Large language models (LLMs) have significantly enhanced cross-modal understanding capabilities by integrating visual encoders with textual embeddings, giving rise to multimodal large language models (MLLMs). However, these models struggle with non-natural images such as geometric and charts, particularly in fields like education and finance. Despite efforts to collect datasets and fine-tune the MLLMs, the gap with natural image understanding is still evident, and the cost of collecting large and diverse non-natural image datasets is high. To address this, we analyzed the limitations of transformer-based vision encoders(ViT) within existing MLLMs from a frequency perspective. Studies have shown that ViT models are less effective at capturing high-frequency information, impairing their ability to capture elements like points, lines, and angles in non-natural images. In response, we introduced FM-ViT, a frequency-modulated vision encoder that utilizes Fourier decomposition to extract high and low frequency components from self-attention features and re-weight them during tuning to non-natural images. In addition, we combine the features of CNN models with FM-ViT and propose EDGE, an MLLM with enhanced graphical encoders tailored for understanding non-natural images. Extensive experiments have confirmed the effectiveness of our FM-ViT and EDGE in 4 types of comprehension tasks (classification, retrieval, captioning, and question answering) on 3 types of non-natural images (geometric, charts, and functional).

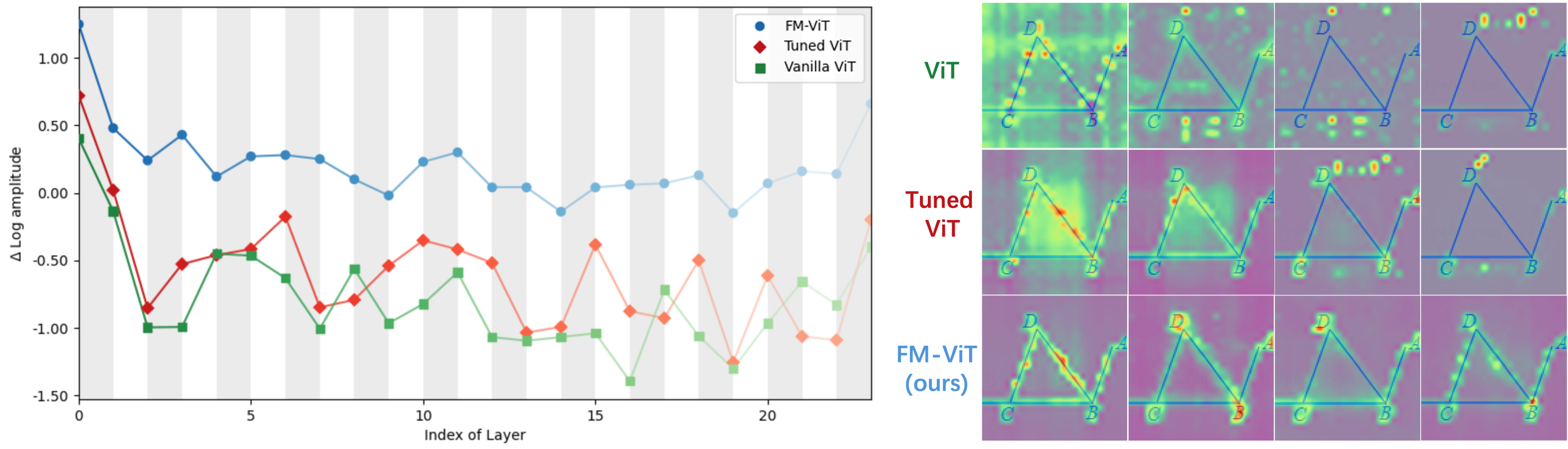

Left: This figure provides ∆ log amplitude of ViT at high-frequency (1.0π). Right: This figure provides attention maps for different layers in ViT, with progressively deeper layers from left to right. We can find that self-attention generally reduces the high-frequency component of the feature map.

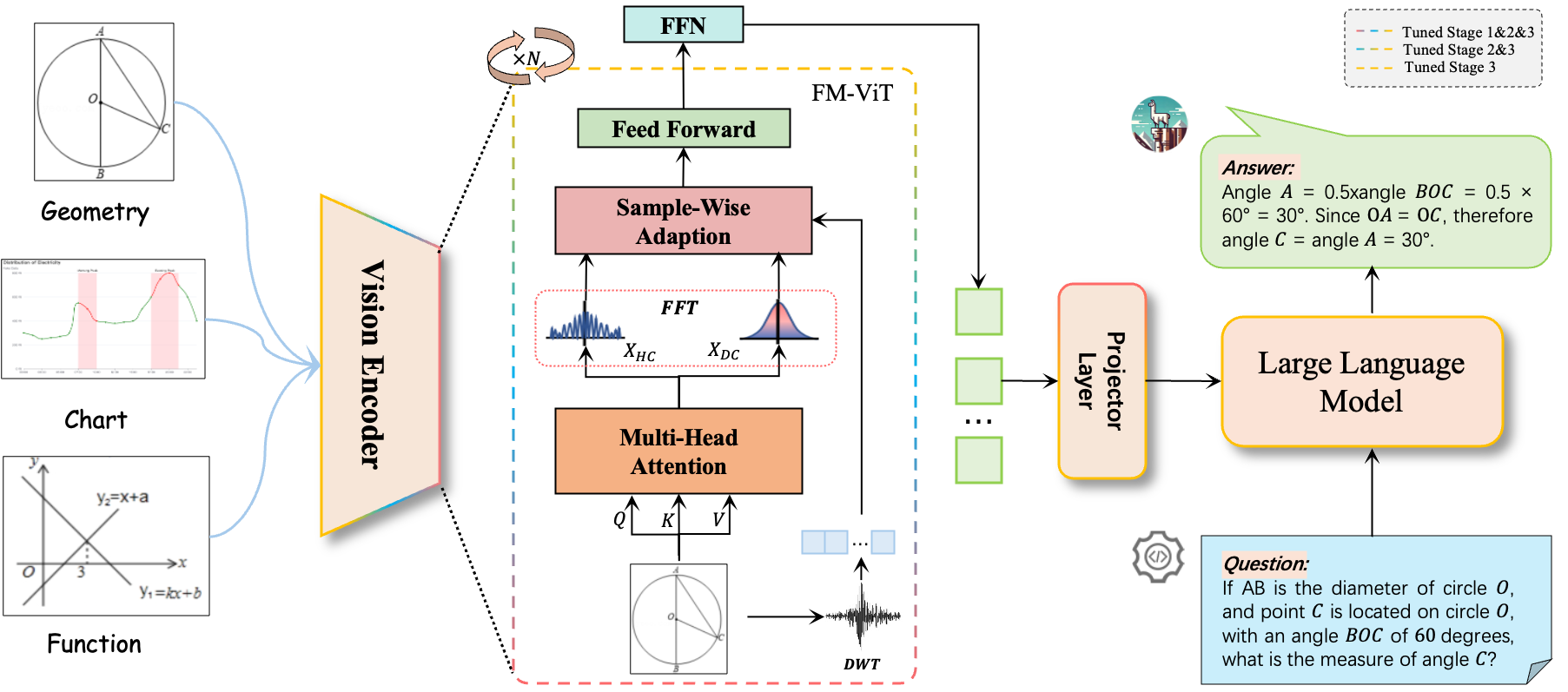

Overview of our approach. For non-natural images such as geometric figures, charts, and function plots, we first apply Fourier decomposition to the attention features in ViT to extract high- and low-frequency components. Using wavelet transform features of the input sample as a condition, we introduce two frequency modulation coefficients to scale the high- and low-frequency components. Building on the visual features from FM-ViT, we fine-tuned an MLLM called EDGE.
Non-Natural Image Captioning

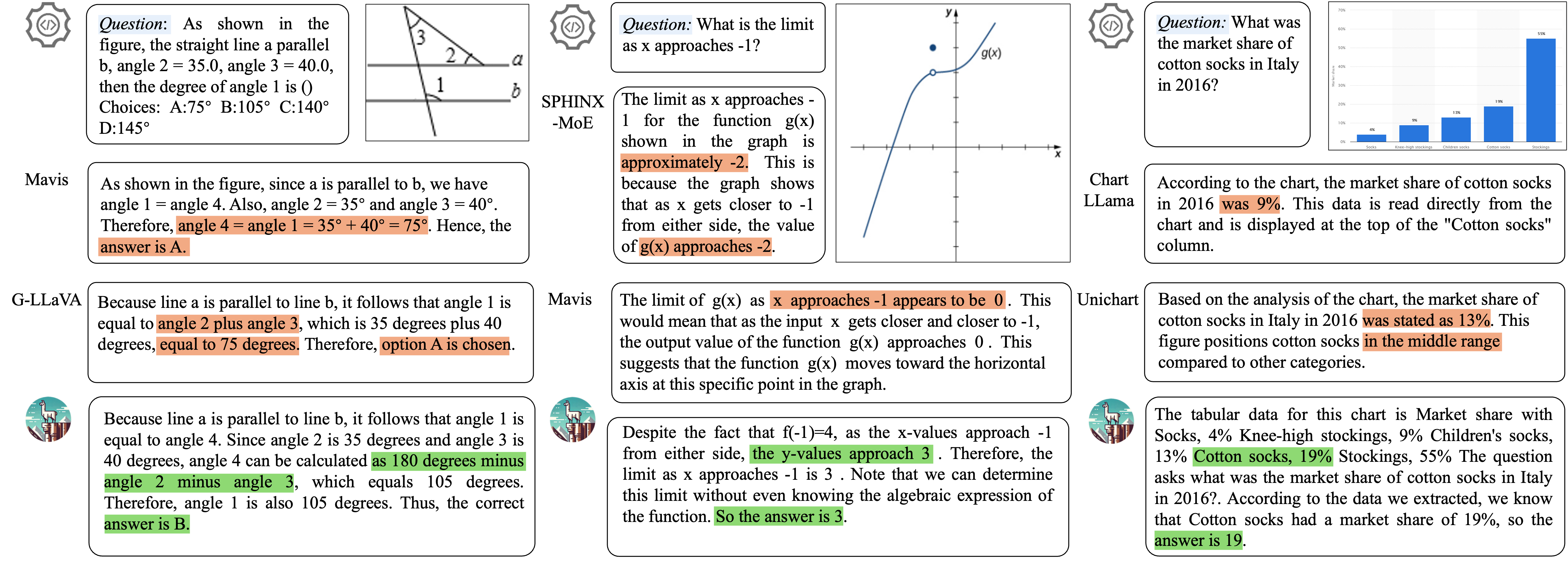

Non-Natural Image Question and Answering
